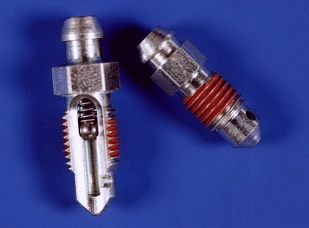

Clutch Bleeder Screw
Application: TR7/8
Triumph Part #: RTC 1115
Other Part #’s: See Comments
Other Vehicles:
References: WWWedge e-mail list
Comments: “The clutch slave cylinder bleeder screws RTC 1115 are roughly equivalent to the Speedbleeder SB1010S. They are also available in Stainless Steel.” - Odd Hedberg
Clutch Master Cylinder rebuild kit
Application: TR7/8
Triumph Part #:
Other Part #’s:
Other Vehicles: Triumph Spitfire 1500
References: WWWedge e-mail list
Comments:
Clutch

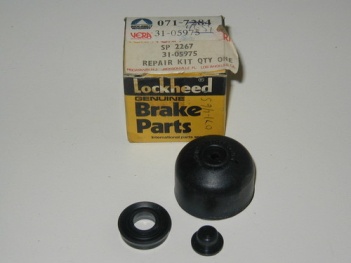

Slave Cylinder Rebuild Kit
Application: TR7 1975-78
Triumph Part #:
8G8806
Other
Part #’s: Girling
SP2267-OE, AP Lockheed brand, part number SP
2267
Other Vehicles: Sunbeam Imp 1965 – 1967, Lotus Esprit 1975 – 1982, Rover 3500 1980 - 1981
References: WWWedge e-mail list
Comments:
Clutch Slave Cylinder – Cap
Application: TR7/8
Triumph Part #:
500201
Other
Part #’s:
Other Vehicles: TRIUMPH SPITFIRE MkI, II, III, IV & 1500, TRIUMPH DOLOMITE 1300, 1500, 1850 & SPRINT, TRIUMPH GT6 MkI, II & III, TRIUMPH HERALD 948, 1200, 1250 & 13/60 ; YEARS 1959-1971, TRIUMPH VITESSE 6/1600 & 2 LITRE ; YEARS 1961-1971, TRIUMPH TR7 ; YEARS 1975-1980, ROVER SD1 ; YEARS 1976-1986, LAND ROVER 90/110 DEFENDER ; YEARS 1983-1990, AUSTIN HEALEY 100-4, 100-6 & 3000 ; YEARS 1953-1968
References: ebay, http://www.triumphspitfire.com/substitute.html
Comments: A really nice looking cap for your master clutch reservoir can be found on the 2000 Chevy Cavalier. It fits perfect and it has specs written on it "use DOT 3 or better". Fits the 1972 Spitfire and maybe the TR7/8.

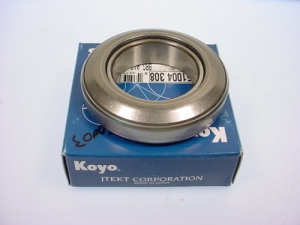

Clutch Release Bearing
Application: TR7/8 - 1975-80
Triumph Part #:
GRB209
Other
Part #’s: CB113,
CB2021, QH
CCT54
Other Vehicles: Triumph TR7 (4 speed & 5 speed) 1975-1980, TR8 1978-1980, GT6 MK1-3 1966–1973, 2000 1966-1967, TR250 1967-1969
References:
Comments:

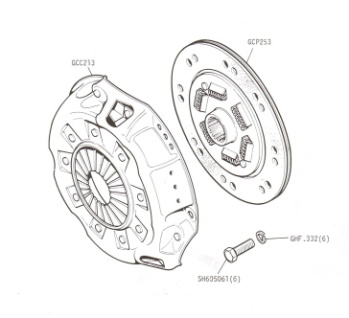

Clutch assembly
Application: TR8
Triumph Part #:
cover-GCC205, Plate- GCP242
Other
Part #’s:
Other Vehicles: Rover SD1 3.5L ,Land Rover Range Rover – 3.5L
References:
Comments:
Differential – Bearings
Application: TR7/8 – 5spd
Triumph Part #:
Other Part #’s:
Other Vehicles:
References: WWWedge e-mail list
Comments: The only difference between the TR7 and TR8 differentials is the gear ratio and brake cylinder.
“I'm overhauling the differential in the '8, and replacing the bearings and seals and one leaking axle seal while I am at it. Here is a cross reference of the Timken numbers (bearings only, no seal info):
TR part# Bearing Outer
Race
Carrier UKC981 LM29749
LM29711
Pinion front 539707 M88046
M88010
Pinion rear UKC978 HM88649 HM88610”
– Bill Derksen

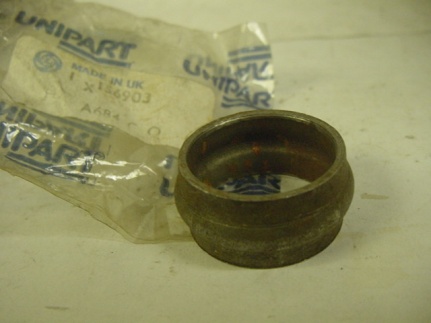

Differential pinion collapsible spacer
Application: TR7 – 4spd
Triumph
Part #: 156903
Other
Part #’s: British
Leyland 156903
Other Vehicles: Triumph TR6 (from CC61571), Stag and Spitfire IV (mid 1973 on) and Spit 1500
References:
Comments: Racers often replace the collapsible spacer with a combination of solid spacer and shims.

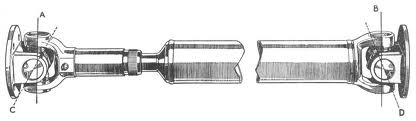

Drive shaft - conversion
Application: TR7/8
Triumph Part #:
Other Part #’s:
Other Vehicles: Range Rover Classic, Triumph TR6, Jaguar XJ6
References:
Comments: Most TR7/8 drive shafts came with either u-joints or CV joints on both ends or one u-joint and one CV joint. Some Canadian (and Australian) TR7’s may came with dual u-joint shafts. All TR8’s were equipped with dual CV joints.
Work Arounds:
Conversion possibilities:
Range Rover Classic, short wheelbase driveshaft is almost a perfect fit. The rear mounting flange bolt holes may need to be opened up for bolt alignment with the differential input flange.
TR6 drive shaft can be adapted to fit the wedge. The length needs to be adjusted. The rear mounting flange bolt holes may need to be opened up for bolt alignment with the differential input flange.
Drive Shaft from Jaguar XJ6 LWB. Needs to be shortened by about 1 1/2".
Drive shaft U-joints
Application: TR7 - 1978-81
Triumph Part #:
GUJ101
Other
Part #’s: GUJ115,
GUJ115HD
Other Vehicles: Triumph Spitfire & GT6 1962-81, Dolomite & Sprint 1975-78, 2000, 2500 MK1,2 1966-78, Fiat 124,125,131,132, 1968-82, MG MGA, MGB & MGBGT 1962-81, Midget, Holden Jackeroo front of shaft 1981-88, Torana (4cyl) 1967-69
Lada Niva 1983-92, Nissan 520-620-720 1965-68,
Volvo 140 series 1967-73, B2O, B2OA 1973-75, 240 series 1974-87 .
References:
Comments: The factory parts manual doesn’t list the Canadian (and possibly Australian) TR7 5spd drive shaft with both front and rear u-joints. Later TR7 and TR8 had two CV joints. A number of venders describe GUJ115 as a GUJ101 with the addition of a zerk grease nipple.
Drive shaft Constant Velocity (CV) Joint Boot
Application: TR7/8
Triumph Part #:
Other Part #’s:
Standard duty: Factory P/N GDG234 (Moss 114-964)
Heavy Duty: Factory P/N GSV1073 (Moss 114-960),
MOPROD CVK 151 classic Mini boot
Other Vehicles: Classic Mini (Standard Duty),
Land Rover (Heavy Duty), 1982 Mazda 323 (use the shortest boot, as there were more than one used by the factory), AWD Dodge Caravan ??
References:
Comments:

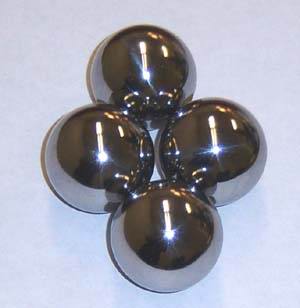

Drive shaft Constant Velocity (CV) Joint Balls
Application: TR7/8
Triumph Part #:
Other Part #’s:
Other Vehicles: 1982 Mazda 323,
References:
Comments: Balls can be bought in fractional over-sizes from most bearing outlets.

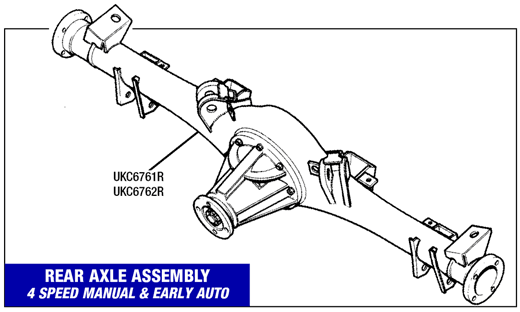

Rear Axle – 4 spd (Banjo)
Application: TR7 – 4spd
Triumph Part #:
Other Part #’s:
Other Vehicles: Herald, Spitfire & GT6
References:
Comments: The Banjo differential has a removable centre housing that is directly interchangeable with the Herald/Spitfire/GT6. Ratios: TR7 - 3.63:1, Spitfire 3.89:1 (US) or 3.63:1 for pre 1500 and other markets.
Rear axle 5 Spd (Salisbury)
Application: TR7/8
Triumph Part #:
Other Part #’s:
Other Vehicles: Rover SD1
References:
Comments: Salisbury differential (with the rear access cover) Gears, bearings and differential interchangeable with Rover SD1. Gear 3:08 ring and pinion is the same as the TR8.
To repair a worn oil seal surface on the 5spd pinion, use National Redi-sleeve / SKF Speedi-sleeve PN# 99114. (Shaft Size Min=1.179", Shaft Size Max=1.184", Width=0.315", Overall Width=0.433", Flange Outer Diameter=1.4", Installation Depth=0.688" ) - www.rockauto.com

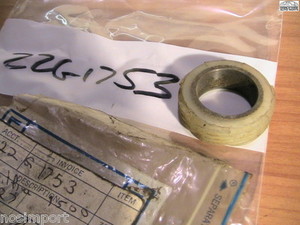

Speedometer – drive gears – 5spd
Application: TR7/8
Triumph
Part #:
See comments.
Other
Part #’s:
Other Vehicles: Any vehicle with the Rover LT77 5spd Transmission (i.ee Rover SD1, Land Rovers )
References: WWWedge e-mail list
Comments:
“The following gears were available from the factory:
Output shaft worm gear (the rear cover needs to be removed to access this gear – top picture)
Colour # teeth Part #
White 7 TKC1273
Black 8 TKC1274

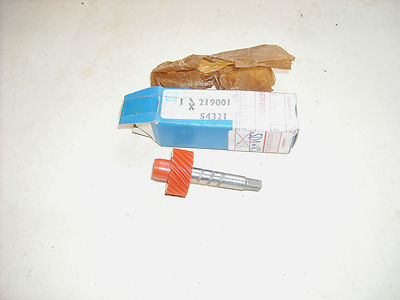

Pinion gears (these stick out the side of the transmission and attach to the speedometer cable – bottom picture)
Colour # teeth Part #
Orange 20 219001
Green 21 219002
Red 22 219003 or 219003A
Black 23 219004
Blue 24 219005
White 25 219006
Assuming stock tyre sizes (185/70-13) the following applies to vehicles as delivered from the factory:
TR7 (3.9 rear axle) : Pinion: black (23) Output shaft: white (7)
TR8 (3.08 rear axle): Pinion: red (22) Output shaft: black (8)
The rest of what follows hasn't been verified mathematically by me, but back in June 1997 there was a protracted e-mail discussion with the main contributors being:
Fred Smith:
“Other Gear options that apparently work:
3.45 rear axle | Pinion : Green (21) Output shaft: White (7)
3.45 rear axle | Pinion : Blue (24) Output shaft: Black (8)
3.08 rear axle | Pinion : Orange (20) Output shaft: White (7)
3.9 rear axle | Pinion : White (25) Output shaft: Black (8)”
Mike Jeffreys: (Note Mikes term "driven gear" is same as my use of "pinion gear")
“My 'rule of thumbs' are:
1) that each tooth on a driven gear gives a 5% change
2) when you go from a 3.9:1 to 3.45:1 axle this is about a 10% change
3) when you go from 3.45:1 to 3.08:1 axle this is about a 10% change
4) when you go from 3.08:1 to 2.85:1 axle this is about a 5% change
So,
1) a standard TR8 gearbox driven gear has 22 teeth,
2) a TR8 gearbox driven gear with a 3.45 axle should have 24 teeth,
3) a TR8 gearbox driven gear with a 2.85 axle should have 21 teeth,
4) a TR7 gearbox driven gear with a 3.9 axle should have 23 teeth,
5) a TR7 gearbox driven gear with a 3.45 axle should have 21 teeth,
6) a TR7 gearbox driven gear with a 3.08 axle should have 19 teeth but the lowest value available is 20, so 5% under-reads, just like my TR7V8-)
7) a TR7 gearbox driven gear with a 3.9 axle could use 22 teeth (seems to be closer to reality in my TR716VSprint)
8) a TR8 gearbox driven gear with a 3.9 axle should have 26 teeth (have to use 25).”
Note also that the reason we can mix and match our speedometer gears is that the speedometers themselves are calibrated to be directly replaceable whether they be for TR8 or the various different ones offered in TR7's over the years.....This is why we can also mix and match speedometers without affecting the accuracy of readings.” - Mark Elbers
Transmission – 4 spd
Application: TR7 –1975-1978
Triumph Part #:
Other Part #’s:
Other Vehicles: Herald/Spitfire/GT6
References:
Comments: Interchangeable with Herald/Spitfire/GT6, but with different gears. J type overdrive from the Spitfire can also be added to TR7 with a shortened drive shaft and additions to the electrical system. J type overdrives were also used in Fords and Volvos of the same period.

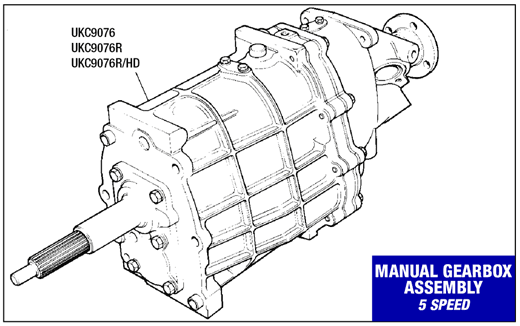

Transmission – 5 spd
Application: TR7/8 - 1979-81
Triumph Part #:
Other Part #’s:
Other Vehicles: Rover SD1
References:
Comments: TR7, TR8 and V8 Rover SD1 transmissions interchange, but TR7 requires different speedometer gears due to rear axle ratio. TR7 gear change is longer than the TR8 or SD1. The TR7 bellhousing is different from the Rover V8 cars and not interchangeable. Later (1981) transmissions were upgraded with better syncros and different 5th gear ratios.
Transmission Borg Warner T5 conversion
Application: TR8
Triumph Part #:
Other Part #’s:
Other Vehicles: 1990’s GM F-body Chevy Camaro/Pontiac Firebird, 5.0 Mustang.
References:
Comments: The Borg Warner T5 from a 1990’s GM F-body Chevy Camaro or Pontiac Firebird is a Rover V8 bolt up using the early 1960’s BOP (Buick Oldsmobile Pontiac) belhousing used on the Buick 215. Clutch and gear shift position may need to be modified along with the rear transmission mount. Custom belhousings are also available to swap in the Ford version of the T5 which uses different belhousing bolt pattern from the GM.
Transmission – Rear Mount
Application: TR7/8 (all models including TR7 16V)
Triumph Part #:
Other Part #’s:
Other Vehicles: Rover SD1 (Auto with GM180 – ie Not Borg Warner), Triumph Dolomite Sprint (Manual Only), Triumph Dolomite 1850 (O/D Only), Triumph Dolomite 1500 (O/D Only)
References:
Comments:
