ENGINE
Description & Picture (may not be an exact representation)
|
Cross Reference |

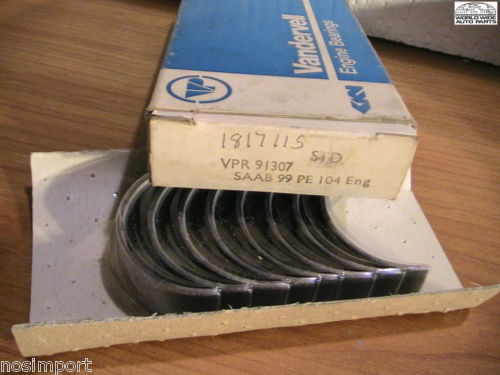

Bearing - Connecting Rod
|
Application: TR7 Triumph Part #: Other Part #’s: Vandervell VP91307, AE Clevite ?? Other Vehicles: 1970-1980 Saab 99 & Triumph TR7, Stag (2 sets) all years References: ebay Comments: |
Cylinder heads
|
Application: TR8 Triumph Part #: Other Part #’s: Other Vehicles: All Rover V8’s, built after the TR8 went into production. References: Wedge e-mail list Comments: Be sure to match the appropriate gasket in order to maintain a similar compression ratio. i.e. composite or metal shim.
Earlier pre Rover SD1/TR8 heads have smaller valves and may not be ready for unleaded petrol.
Later 4.0L heads are skimmed with smaller combustion chambers and 10 head bolts to compensate for the much thicker composite gaskets.
|

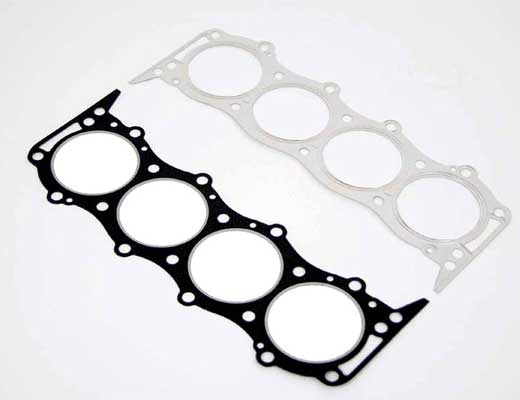

Cylinder head – Gasket
|
Application: TR8 Triumph Part #: Other Part #’s: Other Vehicles: 1961-63 Buick 215, like in a skylark or any Rover V8. References: Wedge e-mail list Comments: Early Rovers use thinner metal gasket. The later 4.0L used a thicker composite gasket that was compensated for by skimming the mounting face resulting in smaller combustion chambers. They also only had 10 head bolts.
The Rover 4.0L has very thick composite head gaskets, the TR8 head gaskets are in the middle and the thinnest are the steel shim gaskets available from D&D (note: they use a sealer unlike the composite gaskets).
Rover also sells a 3.5L composite gasket designed for the early heads which is slightly thinner than their later 4.0L composites, but still looses compression ratio to the original steel shim gaskets.
|
Exhaust – manifold gasket
|
Application: TR8 Triumph Part #: ERC3606 Other Part #’s: Land Rover ERR6733 Other Vehicles: 3.9, 4.0 & 4.6 litre V8 engine. Discovery 1, Discovery 2, Range Rover Classic 1989 to 1995, Range Rover 2 (38A). References: Wedge e-mail list & ebay
Comments: The stock gasket (top picture) was a single port design (8 required). The later replacement gasket (bottom picture) covers two ports (4 required) and is easier to align when refitting the manifolds.
“I've been using Land Rover part# ERR6733. They have been working well for me on the cast iron manifolds.” – Bill Derksen
|

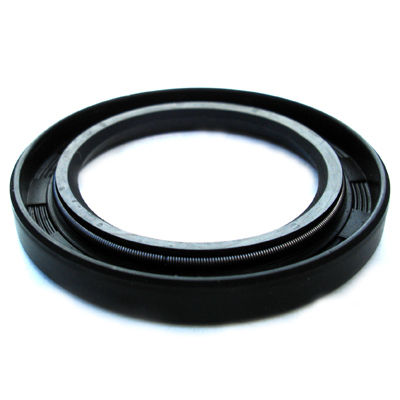

Front seal crankshaft
|
Application: TR7 Triumph Part #: Other Part #’s: Other Vehicles: 1969-1980 Saab 99, 1979-1997 Saab 900, 1986-1997 Saab 9000
References: Wedge e-mail list & ebay Comments:
Repair: To repair the oil seal surface on the Harmonic Balancer. “The TR7/Stag has a 1.883" shaft or thereabouts, and that 88179 sleeve ain't gonna fit. What you actually need is a 99189 for this application. It's a little loose, but you use a sleeve retaining adhesive (like Permatex/Loctite green sleeve retainer) to keep it in place” – Wayne Simpson
|
Front seal crankshaft |
Application: TR8 Triumph Part #: Other Part #’s: Other Vehicles: References:
Comments:
Repair: To repair the oil seal surface on the Harmonic Balancer - “For the TR8's front crank seal I've found: "The part number for the speedi-sleeve for the front crankshaft seal on the Rover V8 is 99192 ” - http://jahornby.webhop.org/rover.html
|

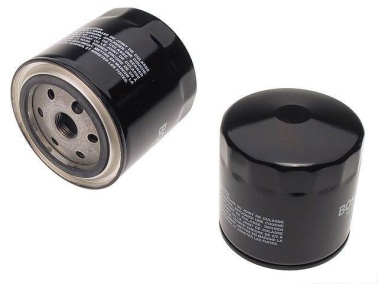

Oil - Filter
|
Application: TR8 Triumph Part #: Other Part #’s: FRAM PH16 Other Vehicles: References: Wedge e-mail list Comments: “Very popular filter size. North Americans can tell the parts guy it is for a mid 1980’s 5.0 Fox Mustang.” – M Elbers
|
Oil - pan - drain plug
|
Application: TR7/8 Triumph Part #: Other Part #’s: Other Vehicles: Triumph Spitfire, TR2, TR3, TR4, TR6 References: ebay Comments:
|
Oil - Pressure Switch |
See ELECTRICAL section.
|

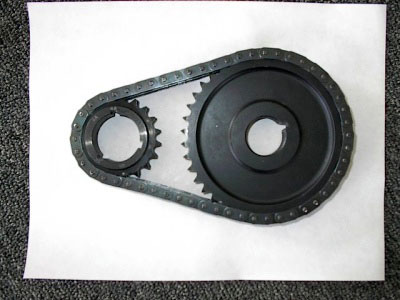

Timing Chain
|
Application: TR8 Triumph Part #: Other Part #’s: Other Vehicles: References: Wedge e-mail list Comments: Any Rover V8’s or Buick 215 V8 or V6 |
Rear Crankshaft Seal |
Application: TR8 Triumph Part #: Other Part #’s: Other Vehicles: References: Wedge e-mail list Comments:
Repair: To repair the oil seal surface on the rear of the crankshaft - “I also used a speedi-sleeve part # 99326 for the rear crankshaft seal on the TR8.” – Joe orsley
|

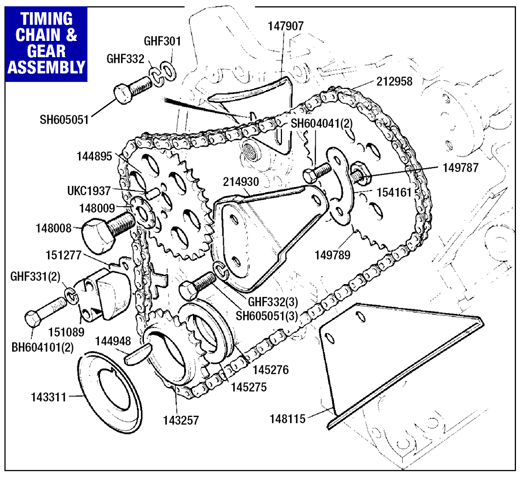

Timing Chain
|
Application: TR7 1975-81 Triumph Part #: 212958 Other Part #’s: Beck Arnley 024-0366 Other Vehicles: 1969-72 Saab 99 (1709 & 1954cc) References: Wedge e-mail list
Comments:
The German IWIS brand part number G68WN-12 106 VGLD is considered
a high quality replacement.
|

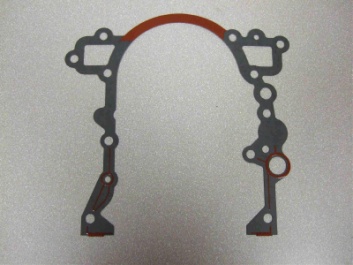

Timing Cover - Gasket
|
Application: TR8 Triumph Part #: Other Part #’s: Other Vehicles: References: Wedge e-mail list Comments: GM Part Number 25536785 may work (check that the holes all line up). It is a nice piece with additional built in orange seals in strategic places.
|

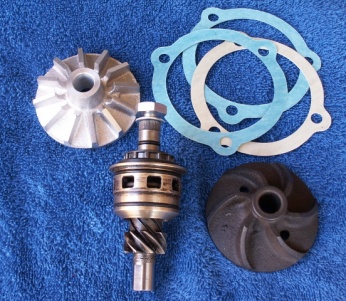

Water pump
|
Application: TR7 Triumph Part #: Other Part #’s: Other Vehicles: All Triumph Stags, Dolomite Sprint References: Wedge e-mail list Comments: The later 12 vane unit preferred. Be sure to use the matching cover.
|

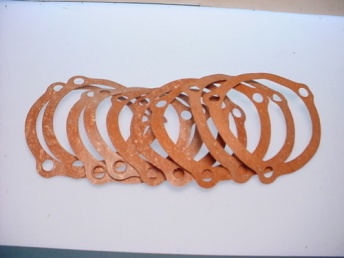

Water Pump - Gasket
|
Application: TR7 1975-80 Triumph Part #: Other Part #’s: 145017 (.010") Other Vehicles: Triumph Stag 1970 - 1977 References: Wedge e-mail list & ebay Comments:
|
