Description & Picture
(may not be an exact representation)
Cross Reference

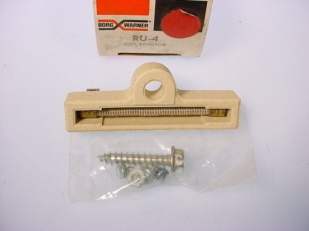

Ballast Resistor
Application: TR7
Triumph Part #:
Other Part #’s: Borg Warner # RU4; Lucas 54427556 (Model 13BR)
Other Vehicles: Triumph Spitfire, Fiat 124, 128, MGB, Midget
References: ebay

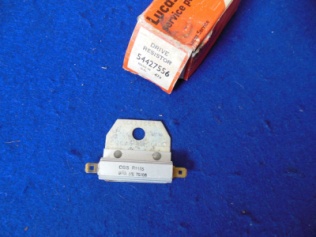

Comments: NOS Lucas Drive Resistor Model 13BR (bottom picture)

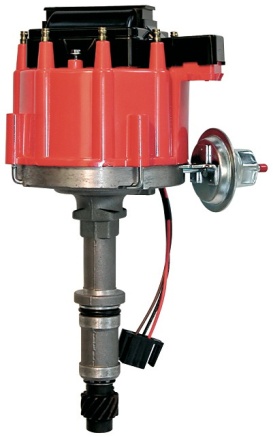

Distributor - Conversion
Application: TR8
Triumph Part #:
Other Part #’s:
Other Vehicles:
References: ebay
Comments:
Conversions:
Large cap HEI from 1974.5-1976 5.7L (350ci) Buick V8, (A-1 part# 30-1896). Swap on the Rover distributor gear and oil pump drive. Front intake bolt on the left side may need to be trimmed a little to fit. Later Buick V6’s that used the same large cap HEI distributor used a button style allen head bolt for more clearance. It also fits the TR8 engine.
An older “small cap” points style distributor from the same Buick engine also works and can be upgraded to electronic ignition by installing a Crane or Pertronix kit. Distributor gear also needs to be converted as above. No manifold clearance issues exist with this unit.
Distributor - Anti-Flash cover
Application: TR7
Triumph Part #: RTC1738 or AAU2882
Other Part #’s: Lucas #54427424
Other Vehicles: 1976-80 MGB, MG Midget, Jaguar XJ6, Triumph Spitfire
References: ebay
Comments: this cover fits under the rotor and protects the electronics from the High Voltage.

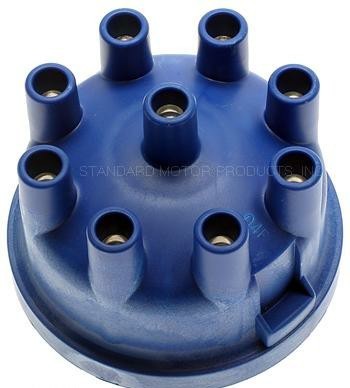

Distributor - Cap
Application: TR8
Triumph Part #: ERC3047 or GCD117
Other Part #’s:
Other Vehicles: V8 engines from Rolls Royce, Bentley, Aston Martin, Rover 3500, Land Rover
References: ebay
Comments:
Distributor – (Delco) - Ignition Amplifier
Application: TR7 1980-81
Triumph Part #: PKC478 or AUE1676
Other Part #’s: Delco D1906 (stock type module and very reliable), NAPA ECH TP45 (probably same manufacturer as the D1906), Pertronix D2000 (street: about 5.5 amp current limit), Pertronix D2070 (Race: 7.2 amp current limit)
Other Vehicles:
References: ebay, Tony Rhodes
Comments: Any GM 4cyl HEI module of the same year should be identical in shape and will probably work. The dwell settings may not be perfect for the TR7, but it should get you home in a pinch.

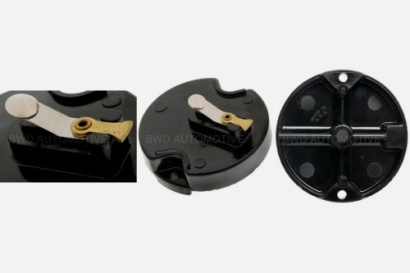

Distributor – (Delco) - Rotor
Application: TR7 1980-81
Triumph Part #: GDC110
Other Part #’s:
Other Vehicles: 1969-72 Saab 99, 1960-61 CORVAIR
References: ebay
Comments:
Distributor – (Delco) – Variable Reluctor Pickup
Application: TR7 1980-81
Triumph Part #:
Other Part #’s: Wells DR-102, NAPA MP102, Delco D1910, LX311(Star ring is very close match (or perfect), the pickup coil wires are correct).
Wells DR-107, NAPA MP107, Delco D1966, LX310 (star ring stator is a perfect match, the pickup coil wires are reversed).
Other Vehicles:
References: WWWedge e-mail list
Comments:
“No exact replacement: reuse original back shell. The permanent magnet is correct on both the DR-107 and DR-103. (Probably any pickup module magnet with a similar size/shape will work regardless of the config uration of the star ring stator). You will probably need to cut off the small indexing tab on the pickup coil to be able to orientate it properly in the shell (the original coil had no tab). The pickup coil Green wire always goes to the “G” terminal.” - Tony Rhodes

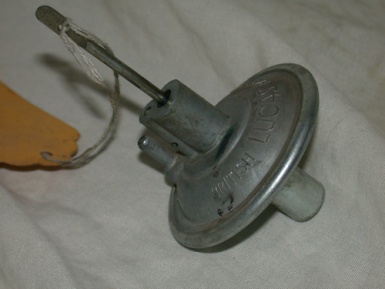

Distributor – (Lucas) - Vacuum Advance
Application: TR7
Triumph Part #: 54426551
Other Part #’s:
Other Vehicles: Triumph, Spitfire MKI, II, III, IV, MG Midget 1977
References: ebay
Comments: This part is used with Lucas distributor part numbers 41593, and 41656.

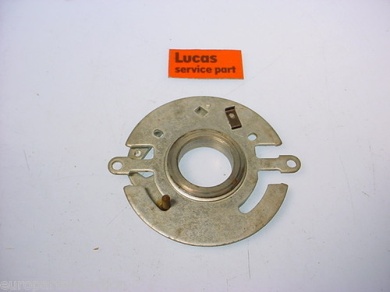

Distributor -
(Lucas) - Base Plate
Application: TR7
Triumph Part #: 54427099
Other Part #’s:
Other Vehicles: Triumph Spitfire & MG Midget
References: ebay
Comments:

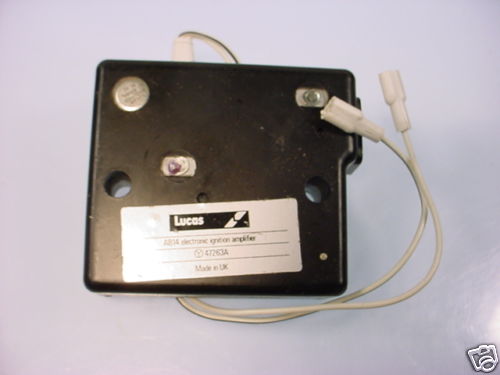

Ignition Amplifier - Lucas CEI (Constant Energy Ignition)
Application: TR7 1975-79
Triumph Part #:
Other Part #’s: Lucas # 47263
Other Vehicles: MG Midget 1500 1975 – 1980, MGB 1977 - 1980
References: ebay
Comments:

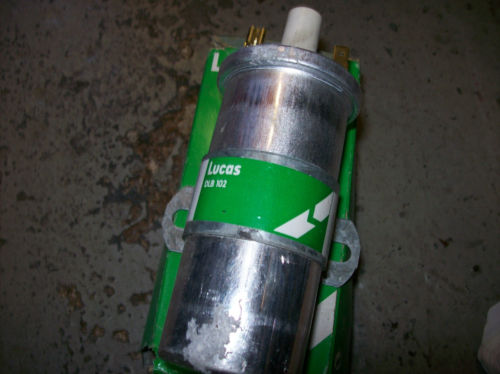

Ignition Coil – (Lucas)
Application: TR7 1975-1979
Triumph Part #: GCL113
Other Part #’s: Lucas # dlb102, Borg Warner “Klitz” Ignition Coil # E40
Other Vehicles: Triumph 1968 - 1973 GT6, 1962 - TR3B, 1963 - 1980 Spitfire, 1962 - 1964 TR4, 1972 - 1973 Stag 1965 - 1966 TR4A, 1968 - TR250, 1969 - 1976 TR6, 1960 - 1961 TR3A, MG 1956 - 1962 MGA, 1962 - 1963 Midget, 1963 - 1979 MGB, 1967 - 1979 Midget, 1969 MGC, 1958 ZB, Porsche 912, Alfa Romeo Spider or Alfetta, Renault R12, Volvo 144
References: ebay
Comments:
Ignition Coil – (Delco)
Application: TR7 1980-81
Triumph Part #:
Other Part #’s: Peugeot-type: Original Engine Management #5048 (reuses original wiring harness)
Delco D525 (NAPA MPE IC22SB) (needs new wires to module and car)
Other Vehicles: GM & Peugeot
References: WWWedge e-mail list, ebay, NAPA
Comments: “There are a number of ignition options for the TR7. It appears that the very best is the Delco HEI distributor with the Delco D525 coil or the “Peugeot” coil. The Lucas CEI appears to have a better spark energy overall than the original HEI system supplied by Triumph, but not as good as an improved HEI system.” - Tony Rhodes
Ignition switch
See ELECTRICAL section.
Spark Plug Wire Set – Lucas Distributor
Application: TR8 1975-80
Triumph Part #: GHT167
Other Part #’s:
Other Vehicles: 1999 Saab 900
References: ebay
Comments:

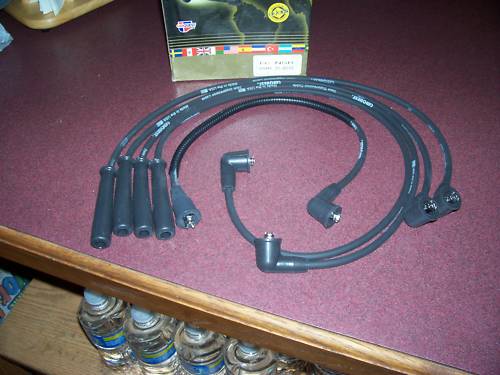

Spark Plug Wire Set – Delco Distributor
Application: TR7 1980-82
Triumph Part #: GHT183
Other Part #’s: Carquest/Prestolite # 35-4248
Other Vehicles: Fiat 850 1970-73 0.9 Liter, Mazda 618 1972 1.8L, 808 72-77 1.6L, B1600 72-76, 1.6L, GLC 77-85 1.3L 1.4L 1.5L, Mizer 76-77 1.3L, Saab 99 1972-74 2.0L
References: ebay
Comments:
