[Fot] TR4 head port dimensions

[GREGORY THOMPSON]

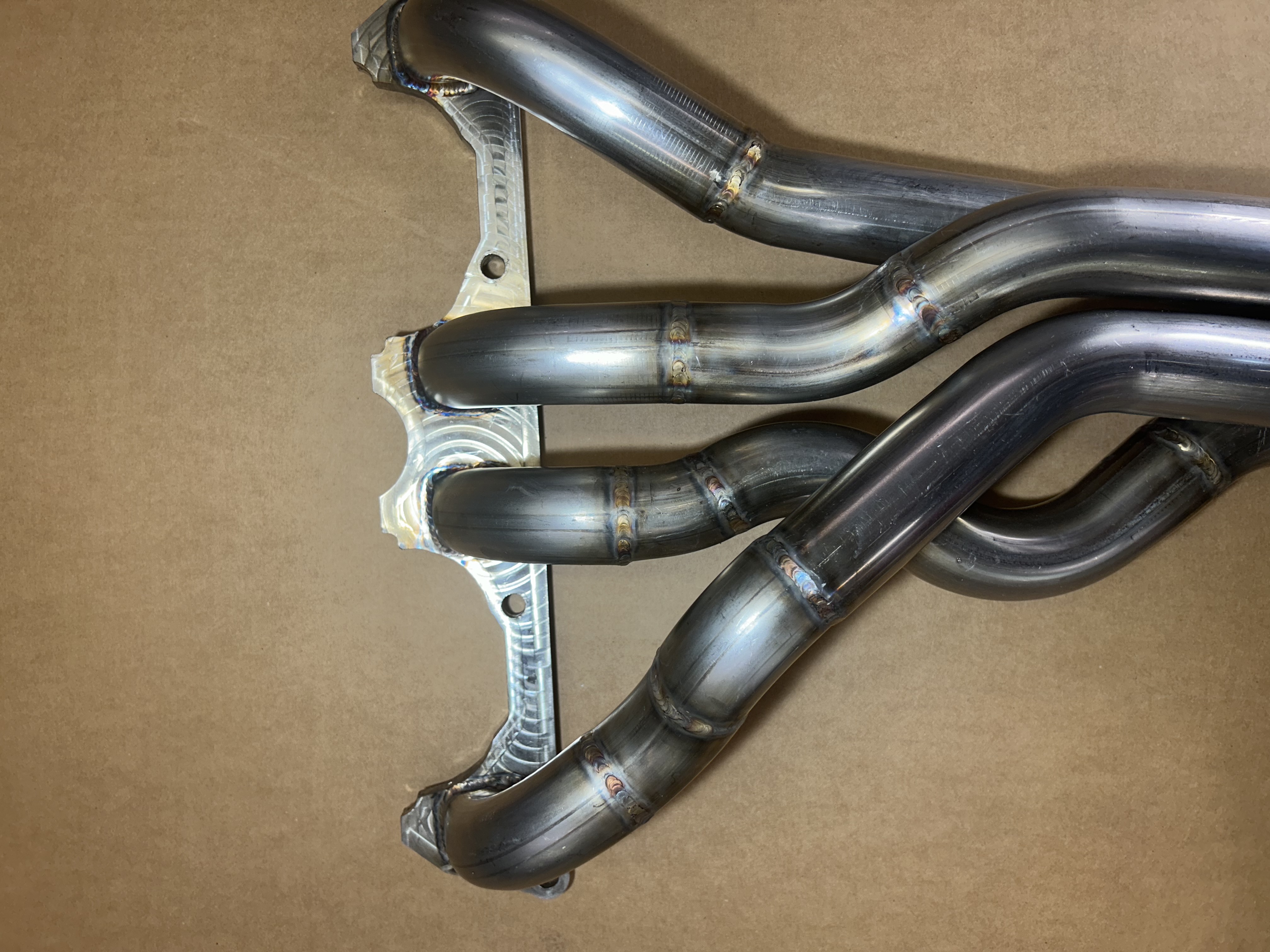

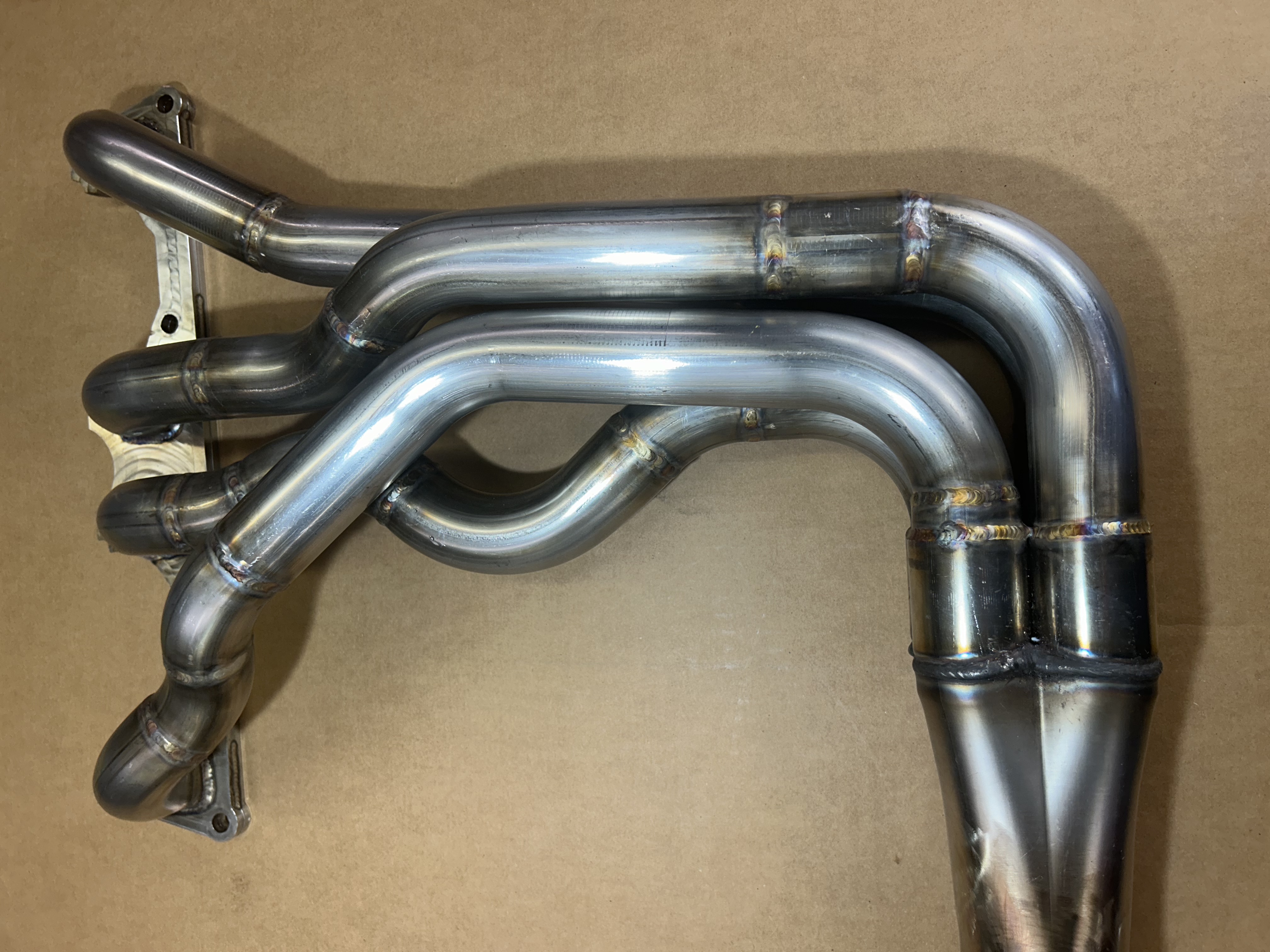

I had a stainless plate made up but won’t be able to get the file until Monday.  Are you doing steel? I could get a quote if you want?  It’s a shop my son works at so I get a little break.  Email me at thompsong at prodigy.net if you want to take it off the FOT list.



 Greg


Sent from AT&T Yahoo Mail for iPhone


On Saturday, March 22, 2025, 5:14 PM, Michael Deweerd via Fot <fot at autox.team.net> wrote:

Has anyone ever laid out the TR4 port sizes and dimensions? I’m wanting to know the distance between exhaust ports and the bolt pattern to make my header. If anyone has a pdf drawing it would be appreciated. Cheers

Mike Deweerd_______________________________________________
