[Healeys] Lucas Reflectors

[Bob Spidell]

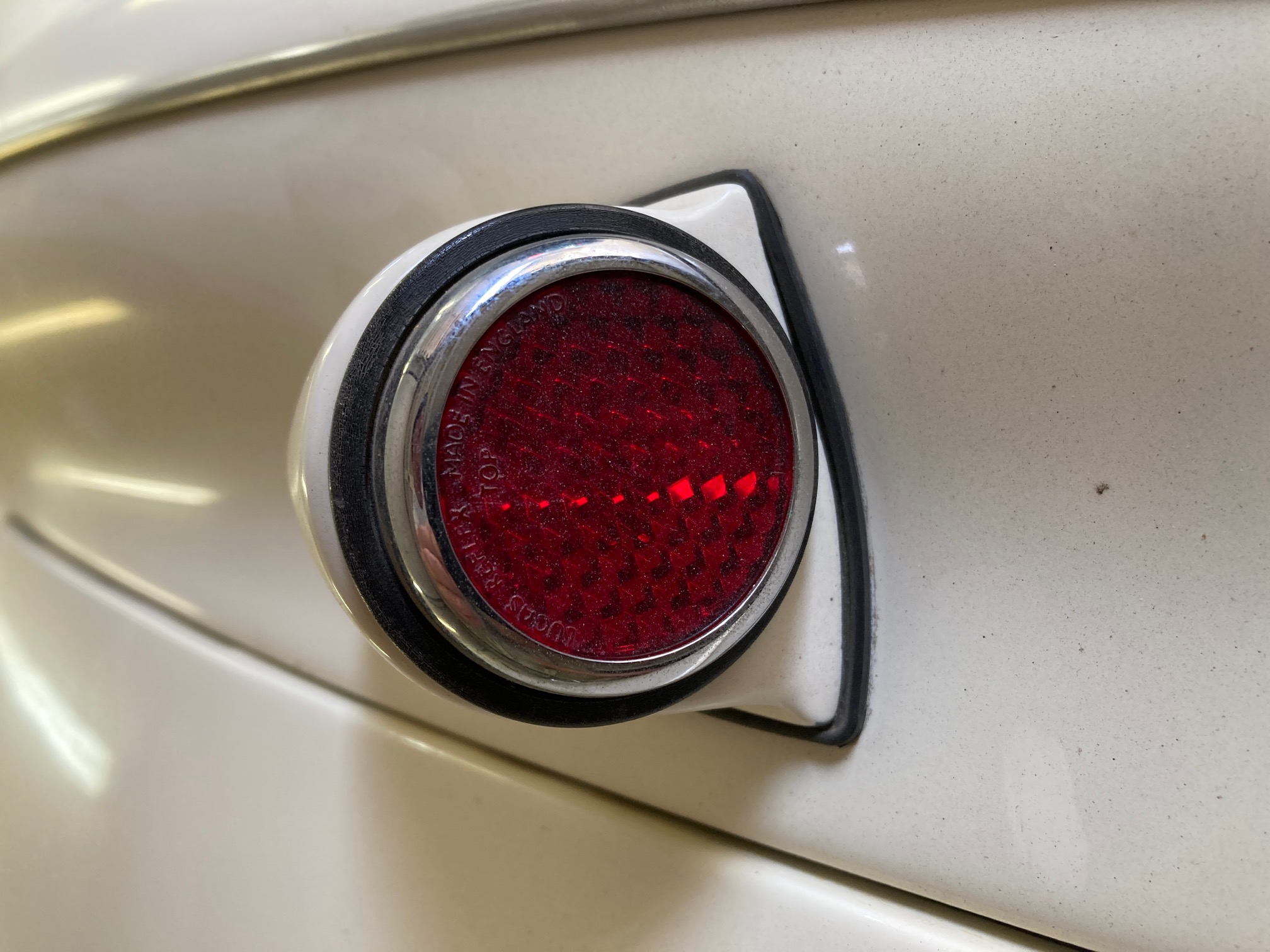

#3 looks very similar to the ones I acquired for my BN2. I got them from
a former jet engine engineer for Pratt & Whitney who made a small batch
as a retirement project, who claimed to have researched them thoroughly.
He constructed them from spun brass with 'proper' chrome plating
(copper->nickel->chrome). I have no idea where he acquired the lenses,
but IIRC--and the Moss catalog shows--they were attached to the plinths
with 10-32 screws. The rubber pads I got from David Nock at BCS who had
a batch made since the "usual suspects'" offerings were not up-to-snuff.

Bob


On 3/10/2025 8:15 AM, Michael Salter wrote:
>
>
>
> I'm working on a Concours Guidelines update about reflectors and would
> appreciate some help.
> I  have these 3 examples.
>
> 1. This type has a grooved rubber back allowing it to be inserted into
> a hole in the plinth pressed into the rear shroud of earlier 6
> cylinder cars.
> 2. This is a type that I don't know about.  It appears to require an
> outer lens (probably the colical type) BUT it has a 10/32 thread
> sticking out the back such as the later 100 type did.
> 3. This type has the same back side as #1 but the front looks to me to
> be of the type fitted to the plinth on the later 100's.
>
> I suspect that #s 2 and 3 are not Healey but am open to being corrected.
>
> M
>
