[Healeys] Lucas Reflectors

[Curtis Arndt]

Michael,

I have owned no less than four [4] of the RER5 reflectors for BN1/2s, two
in red and two in orange, ALL NOS in box* [RER 5, 57-052]*.

My BN1 [b7197 11 Jan. '55] came with orange reflectors and it now has an
NOS pair installed. Many of the low mile BN1s [cars with <20K miles] within
200 body numbers either side of my car had orange reflectors.

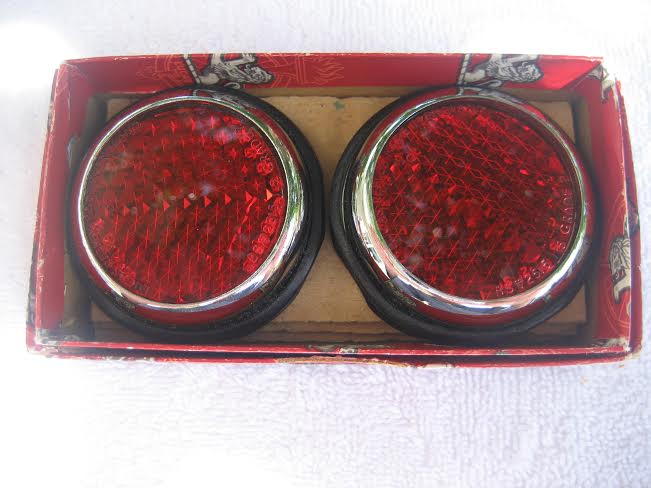

Both the red and the orange reflectors faded severely with time. See the
photo of my restored faded reflectors. All of the NOS reflectors I've owned
came with a slotted, oval head, sheet metal screw which I changed out to a
proper 10-32 pan head, Phillips screw for mounting on the pods.

Reflectors were introduced on BN1s at... *Body no. 6128 (c221310) Sep ‘54 -
Rear reflectors on pods fitted (NY Auto Show Car).*

Richard Gordon's  very original. [10K orig mile] Concours Gold BN1 built 18
Feb. '55 came with one red and one orange reflector.

Cheers,

Curt

On Mon, Mar 10, 2025 at 8:57 AM Michael Salter <michaelsalter at gmail.com>
wrote:

>
>
>
> I'm working on a Concours Guidelines update about reflectors and would
> appreciate some help.
> I  have these 3 examples.
>
> 1. This type has a grooved rubber back allowing it to be inserted into a
> hole in the plinth pressed into the rear shroud of earlier 6 cylinder cars.
> 2. This is a type that I don't know about.  It appears to require an outer
> lens (probably the colical type) BUT it has a 10/32 thread sticking out the
> back such as the later 100 type did.
> 3. This type has the same back side as #1 but the front looks to me to be
> of the type fitted to the plinth on the later 100's.
>
> I suspect that #s 2 and 3 are not Healey but am open to being corrected.
>
> M
> _______________________________________________
> Support Team.Net http://www.team.net/donate.html
> Suggested annual donation  $12.75
>
> Archive: http://www.team.net/pipermail/healeys
> http://autox.team.net/archive/healeys
>
> Healeys at autox.team.net
> http://autox.team.net/mailman/listinfo/healeys
>
> Unsubscribe/Manage:
> http://autox.team.net/mailman/options/healeys/cnaarndt@gmail.com
>
>
