[Healeys] Axle tube measurement required

[m.g.sharp at sympatico.ca]

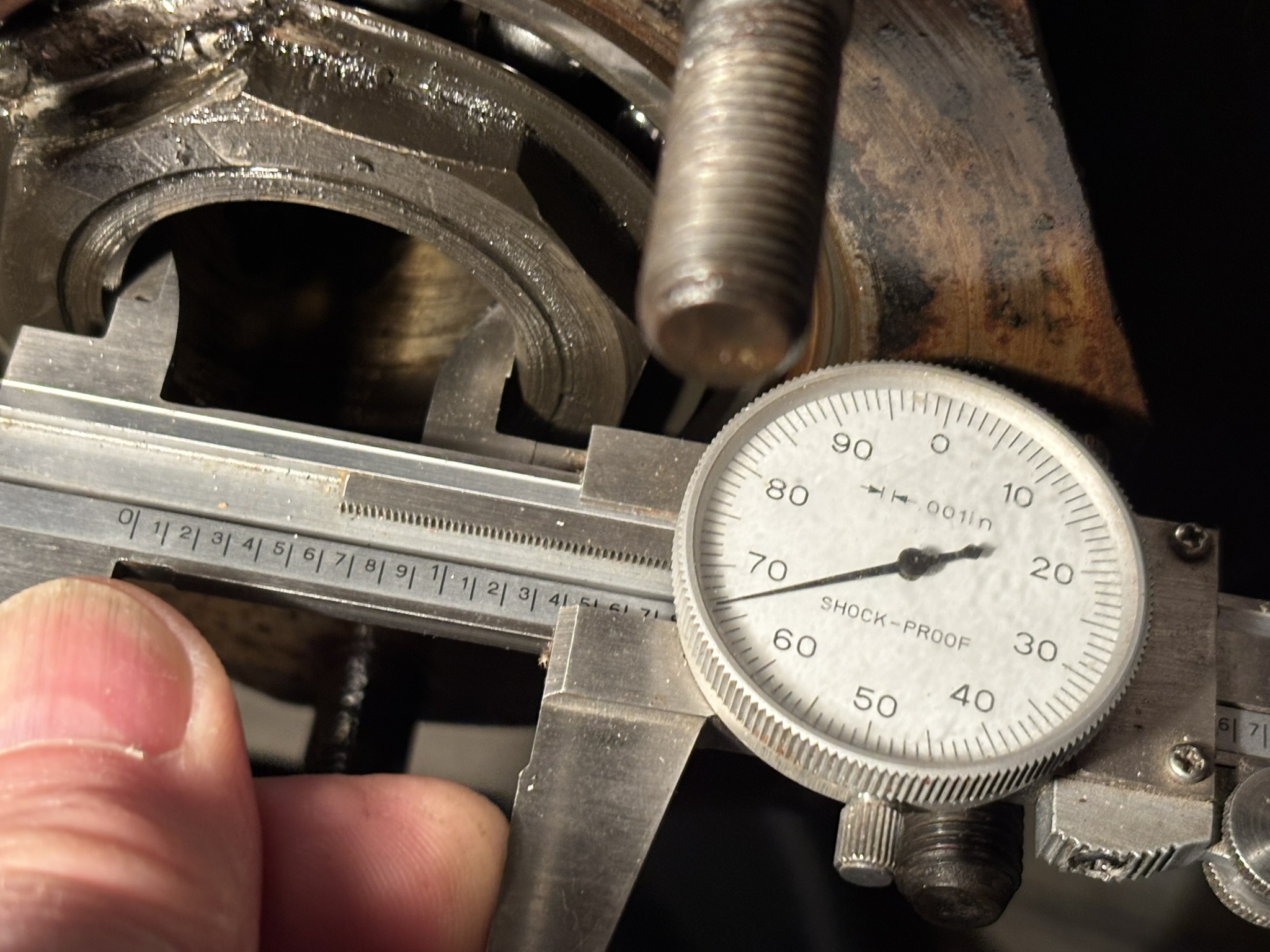

Mike, I think I understand the measurement you want – see the photo to confirm.   I get the odd size of 1.366”.  I cleaned the inside of the tube so I think that is a good measurement.  That diameter only continues for about 1.5” up the tube,  then the tube diameter increases; I can just feel the change with my finger.



Give me a call if you want to walk me through anything.  519 841 0676.



Mirek







From: Healeys <healeys-bounces at autox.team.net> On Behalf Of Michael Salter
Sent: March 17, 2025 10:02 AM
To: healeys at autox.team.net
Subject: [Healeys] Axle tube measurement required



Does anyone have the rear half shafts out of their hypoid (5 stud) rear axle and could get me a measurement of the inside diameter of the tube upon which the wheel bearing is mounted?

I am modifying a tool for the hub nut.



M
