[Zmagnette] Heater control connections

[Allen Bachelder]

Steve,

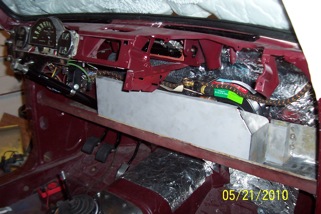

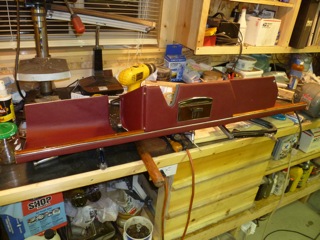

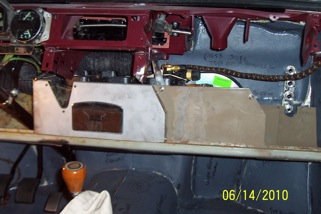

Here are some pics in small file form. I can send larger ones to you or other individuals off-list if you like.  If you order one of these from Vintage Air, on your request they'll send you an empty plastic dummy unit to use for fitting and attachment purposes. It's about $50 fully refunded when you return it.  At the time, I did not know if it would fit - so that was a good deal for me.

Holiday Cheers,
Allen
****************************************************************
Allen & Florrie Bachelder       =iii=<
Spring Creek Home for Wayward MGs
'57 ZB, '65 B, '69 C/GT, '73 B/GT
North Street, MI 48049, USA
http://www.mgexperience.net/member/bachldrs
****************************************************************

On Dec 20, 2013, at 12:10 PM, Steve C. wrote:

> Allen
> Do you have sime photos of your new combined heater/evaporator unit? While my heater works fine I hsve wsnted to add ac for yesrs.
> Steve C.
> --
> Sent from my Android phone with mail.com Mail. Please excuse my brevity.
>
> Allen Bachelder <bachldrs at comcast.net> wrote:
> James,
>

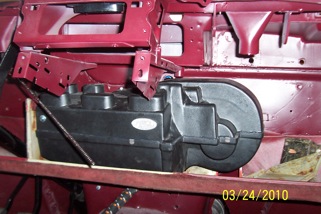

> No, you weren't sleeping. In my case, it was a new combined heater/evaporator unit - a "Gen II" unit from Vintage Air. It's a tight fit but it works very well in both modes.
>
> Holiday Cheers!
> Allen
>
> Sent from my iPhone
> Spring Creek Home for Wayward MGs
> Allen Bachelder, prop.

>

>
