Roger:
     I sounds like there are two separate issues.
     On your ZB, the Dome light should have a brown wire with a green
tracer to power it and a brown wire with black tracer to the door
switches to ground it.  This will be energized all the time not just
when the key is turned on, so I would recommend checking out your
connections to the dome light.
     The turn signal issue is most likely incorrect wiring at the

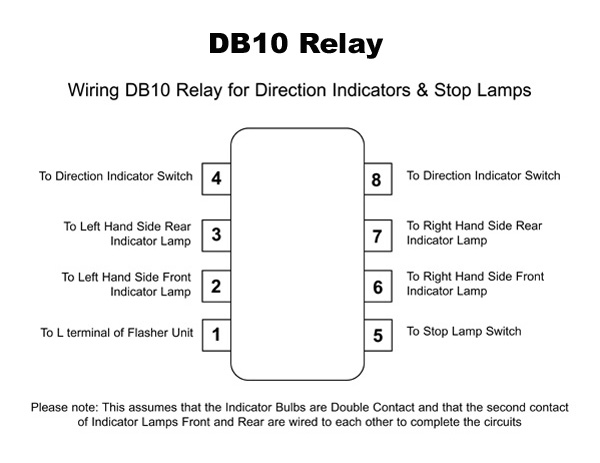

direction indicator relay unit.  Here is a diagram of just the unit that
may help you.  On my own car, the cover was on the unit incorrectly so
when I thought I was attaching a wire to terminal 1 it was actually
terminal 8.  If you look at the factory shop manual diagram, the
Direction Indicator Relay Unit, it shows the coils and relay points -
with the diagram I enclosed, you should be able to determine if your
relay unit has had the cover installed wrong or not.
     Perkins
On 2/17/2014 10:44 AM, Richard Greenberg wrote:
> I'd start by finding which wire supplies the dome light, and track it
> back to the power source.
>   Rick Greenberg
>
> On Feb 17, 2014, at 9:06 AM, Rodger Shaver wrote:
>
>> I have been frustrated with a glitch with my re-wiring job. This is a
>> 59 ZB with a new British Wiring harness. Regulator is the original,
>> as are horn and signal light relays. New flasher unit form Moss.
>> Re-wired stator tube.  Most electrical functions seem correct, e.g.
>> the heater fan motor, the ignition, headlights.  However, when I turn
>> on the key all four signal lights flash, along with the dome light. I
>> have checked connections to dash panel and relays and can't find a
>> problem. I have had trouble confirming green wire continuity from
>> fuse box to all connections. Finally, I have four green wires at the
>> fuse box, not the three illustrated on the ZA diagram I have in my WSM.
>> I need advice on how to troubleshoot this problem, everything I check
>> seems ok or doesn't make any sense. Rodger
