[Zmagnette] Thermostat housing

charles durning durningcharles at gmail.com
Sat May 17 19:55:33 MDT 2014

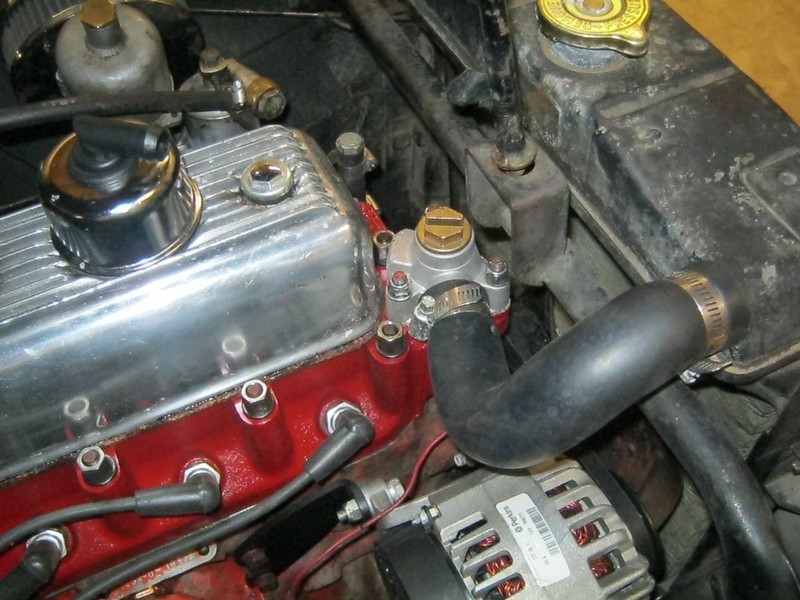

FYI on a replacement therm housing.  The ones that I have found for the
Magnette direct the outlet slightly towards the radiator making the hose
bend at awkward angles to get around the cross bar.  What I used was a
therm housing for a '77 through '80 MGB.  I just cut off the bracket.  Now
the outlet points slightly rearward making an easy fit for the top
hose. Here are some pics the upper hose is a Dayco 71325.  The dayco hose
has all of the right bends for a kink free upper hose.




Charlie Durning

If you are using Google or Gmail, Big Brother is watching.



On Sat, May 17, 2014 at 6:24 PM, Jon Marino <jonnyprecious at comcast.net>wrote:

> Thanks FRM,
>
> It took me about an hour, but I basically had to chisel off the housing
> carefully, piece by piece. After I soaked it all in penetrating lubricant,
> I
> removed the studs (carefully...and I mean carefully, using a vise grip)
> after I got that particular piece of the housing off. There was no
> thermostat in there, which surprised me, so now I am wondering how to flush
> this baby out. Any suggestions would be awesome.
>
> Jon M.
>
> -----Original Message-----
> From: zmagnette-bounces at autox.team.net
> [mailto:zmagnette-bounces at autox.team.net] On Behalf Of
> zmagnette-request at autox.team.net
> Sent: Saturday, May 17, 2014 4:02 PM
> To: zmagnette at autox.team.net
> Subject: Zmagnette Digest, Vol 8, Issue 60
>
> Send Zmagnette mailing list submissions to
>         zmagnette at autox.team.net
>
> To subscribe or unsubscribe via the World Wide Web, visit
>         http://autox.team.net/mailman/listinfo/zmagnette
> or, via email, send a message with subject or body 'help' to
>         zmagnette-request at autox.team.net
>
> You can reach the person managing the list at
>         zmagnette-owner at autox.team.net
>
> When replying, please edit your Subject line so it is more specific than
> "Re: Contents of Zmagnette digest..."
>
>
> Today's Topics:
>
>    1. Re: Zmagnette Digest, Vol 8, Issue 57 (Fletcher Millmore)
>    2. Oops - sorry. Was:  Slightly OT-Carpet adhesive,  now: Stator
>       Tube Wiring (Allen Bachelder)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Sat, 17 May 2014 15:53:38 -0400
> From: Fletcher Millmore <gofanu at cust.usachoice.net>
> To: List for the Z Magnette Group - North America
>         <zmagnette at autox.team.net>
> Subject: Re: [Zmagnette] Zmagnette Digest, Vol 8, Issue 57
> Message-ID: <5377BE42.20502 at usachoice.net>
> Content-Type: text/plain; charset=ISO-8859-1; format=flowed
>
> Jon-
> The problem arises because water has seeped past the gasket and into the
> stud holes, causing corrosion. The corrosion products are bigger than the
> metal they start as, so form an expanding wedge against the studs - it has
> been known to split the housing.
> Remove all 3 nuts/washers.
> Penetrant into holes, which you will see are full of white stuff, if you
> are
> lucky not all 3!
> It is worth trying some heat from a propane torch on the housing, and
> tapping on the housing with a soft hammer.
> You will see if any of the studs are not in this condition.
> You can put nuts on the studs and tap sideways on them, to move each stud
> individually in the hole.
> You can double nut the studs and remove them, if they move, BUT:
> Do not remove more than one until you can move all 3; people sometimes get
> two out, with it still seized on the third, which is when they break the
> stud off in the head, or break the housing.
> If you get one out,. clean the stud and the hole, them put it back in until
> you work the others free.
> It sometimes takes quite a bit of this fiddling in bad cases.
> Patience and repetition are good - brute force is a disaster.
>
> (I did have one epic case of a cast iron Spridget housing that had to be
> carved off with a chisel!)
>
> Once you get it off, you will see that there is a very narrow edge that
> seals between the stud holes and the thermostat bore, and the housing is
> usually corroded here.
> All this is the result of poor gaskets, poorly fitted over the years.
> The Magnette housing is not common to many other cars in the US, so getting
> another is hard, and impossible for a new one.
> AND, the replacement gaskets are nowhere near the quality the OE were - and
> the OE were nearly always installed incorrectly and overtightened to
> failure
> point.
> SO, this is one of very few places I use LocTite Gasket eliminator or RTV
> silicon instead of a gasket. Use it sparingly, but pay attention to that
> narrow edge.
> Coat the studs with Anti-Seize compound before assembly.
>
> FRM
>
