[Fot] Perhaps the best GT6 Racing axle ever made.

[Jason Sukey]

Interesting to see the different approaches to GT6 rear hubs/bearings/axles.

My race car has the 240z hubs and bearings - but similar to others, parts
are getting hard to find.

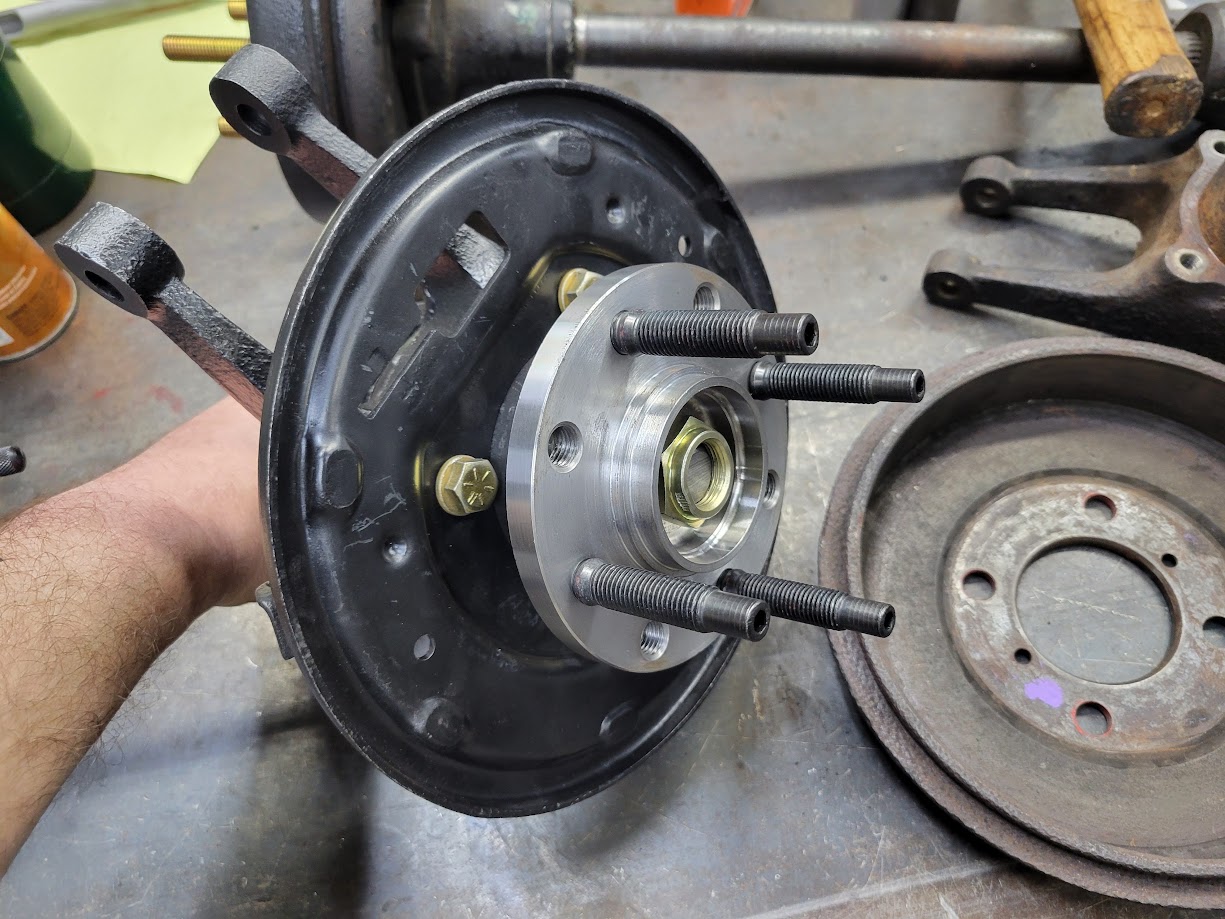

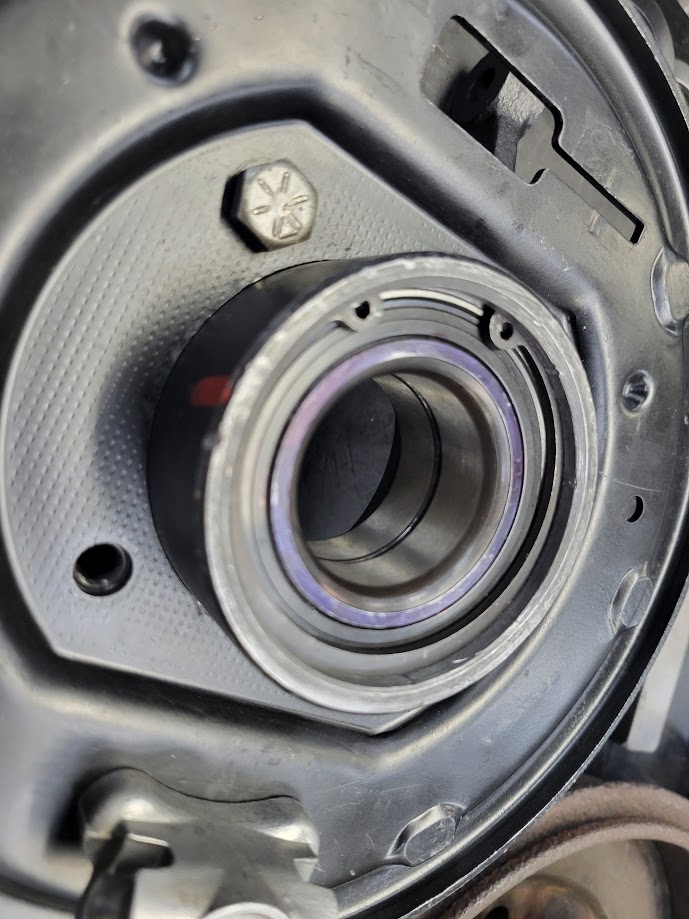

I converted Kallie's race Spitfire to the GT6 style rear suspension this
year.  We're using  front wheel drive style cartridge wheel bearings and
hubs.  Similar to what some of the UK guys have done using modern MGF
bearings and hubs, but with parts that are easy to find new in the USA.  So
far, it's proven to work well.  I hope to convert my GT6 racer to this
setup after this race season is over.


Jason Sukey

On Wed, Aug 13, 2025 at 10:23 AM Scott Janzen via Fot <fot at autox.team.net>
wrote:

> My GT6 came to me with Corvair stub axles, GM bearings, modified uprights,
> coupled to Spicer sliding half-shafts and u-joints.  I’ve had them apart
> several times, crack tested, new bearings every few years. Never an issue.
> I have in-period drawings for the conversion, should anyone want them,
> though Corvair stub axles are getting scarce.  I have the parts to build a
> spare set, but never had the machine work and welding done to the
> uprights.  Photos of the stub axle, and a modified and stock upright are
> attached.
> Seems like there were a variety of successful solutions.
>
> Scott
>
>
