A final development of the Type 401 - This Type was
introduced in 1953. Production was to be continued for two more years and ceased in 1955. |
page revised 4th May 1998
( Full size image
136k jpg )

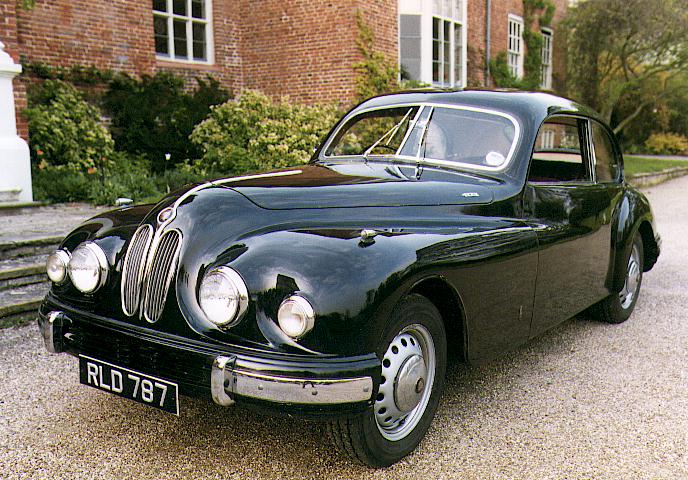

Some more obvious identifying features are the
bonnet and boot badges and the wing top mounted sidelights. Originally
the front grille inserts were painted Silver.
The Type 403 was initially fitted with a more developed Bristol 100A series
engine, but later cars were fitted the more advanced 100B series unit -
which was inevitably itself further developed, as the 100B2 series and was
combined with a remote short shift gearbox with Laycock de Normanville
overdrive on top gear. This was fitted as standard on the last few Type 403
models. The more powerful transmission package was later to be fitted as
standard on the Type 405 Saloon.
Many early Type 403 cars were so modified and these engine units are
identified as either 100AB series or 100AB2 series units according to
specification.
Because of the increased power from even the base level
100A series engine unit, an Anti-roll or Sway bar was added to stiffen
further the front suspension.
The brake linkage was modified to reduce
pedal pressures required and Alfin Brake Drums were fitted initially on all
four wheels, but later only on the Front wheel units, the extra cooling on
the Rear Drums having proved unnecessary.
( Full size image
99k jpg )

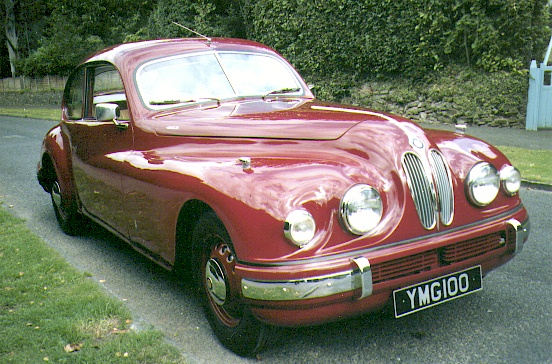

This Type 403 clearly marked by the Bonnet and Red coloured Wing Flank
Pegasus Badges has the original style Silver painted inserts to the Chrome
trimmed BMW styled Radiator Grilles. Note also the additional but discretely
camouflaged twin horizontal air intakes at mid Bumper level introduced on
the Type 401 and retained to the Type 403.
