Note the rounded corners of the new radiator grille shape. The outer
headlamps and the side/indicator lamps are still mounted on a flat
panel set back from the radiator grille aperture cowl.
( Full size image 103k jpg )

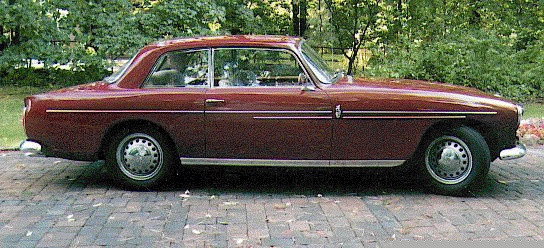

This profile view shows the heavier side Kickplate fitted to the lower edge
of the body of the 409. Also the view shows the way that the side trims are
intersected by the Pegasus emblem and Bristol badge, at the rear of the
front wings. Note the excellent driving seat position mounted back from
centre of the 9 foot 6 inch wheelbase at the mid point of the vehicle.
( Full size image 109k jpg )

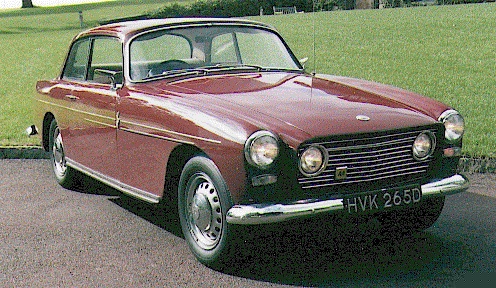

The front ¾ view gives another view of the rounded lower corners of the
Radiator Grille when compared with that of the Type 408 on the previous page
illustrations.

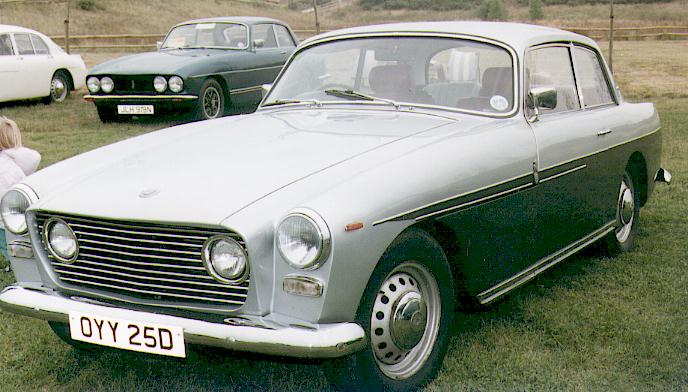

( Full size image 74k jpg )
Driving lamps are switched on to show the effective even spread of
lighting that they provide on main beam, the inner pair are dowsed
when dipped beams are selected.

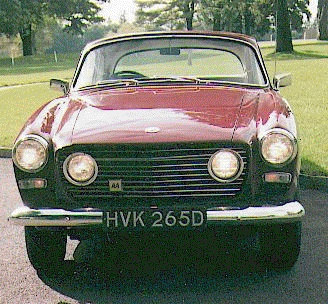

( Full size image 61k jpg )
Seen in close up the Radiator Grille aperture is rounded at all corners
unlike the 408. Driving Lamps are still set recessed into the Grille.
Headlamps are mounted onto a flat surface along with the combined Side and
Turn Indicator Lights. This element was a continuation from the Type 408 but
was to be much modified as will be seen on the next model.
