Type 411 Type 411 s2 Type 411 s3 Type 411 s4 Type 411 s5 |
was introduced in 1968, was introduced in 1971, was introduced in 1972, was introduced in 1973, was introduced in 1975, |
series production ceased in 1971. series 2 production ceased in 1972. series 3 production ceased in 1973. series 4 production ceased in 1975. series 5 production ceased in 1976. |
( Full size image
41k jpg ) / or move to next version
Fitted 383 cu in. 6277cc engine installed with a Torqueflite 3
speed auto transmission.
The 411 body is very similar to the type
410. Externally the radiator grille is more trapezoidal than the
410's. The inner pair of driving lamps protrude from the radiator
grille. Slimmer Bumpers wrap round the body at front and rear. There
is an air vent intersected by a short moulding strip on both rear wing
flanks linked by ducting to vents at the rear parcel shelf. Only one
trim line is applied to the wing flanks. Door kick plates are narrower
than on the 410. A wing mounted repeater flasher light is mounted on
the top of the front wing flank. Bonnet badge is deleted in favour of
a narrow nameplate.
( Full size image
91k jpg ) / or move to next version

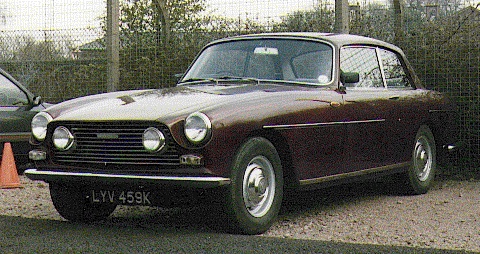

Door locks and handles are semi recessed. Bumpers are marginally higher. A
self levelling suspension system was introduced. Odometer is also marked in
Kph. Wheel rims are wider.
(Full size image 59k jpg) / or move to next version

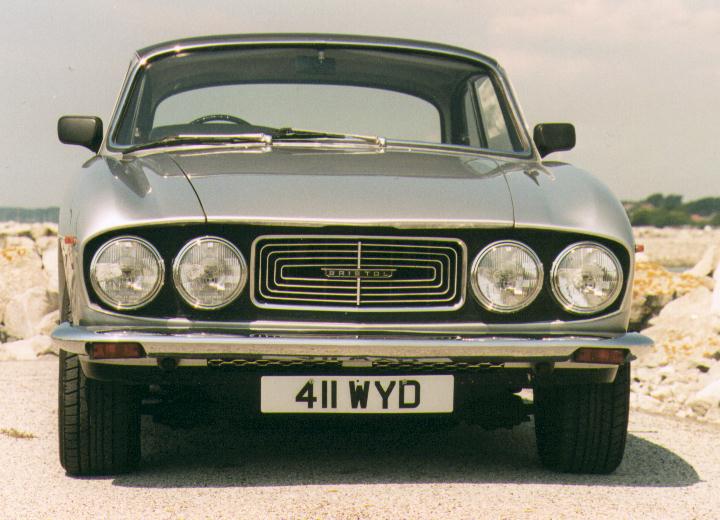

Body is completely restyled. New larger 6556cc. 400ci. engine introduced. Most noticeable changes in appearance are the Front Wings, Bonnet, and
Grille restyle. The s3 Grille contains name Bristol. Wings are not notched
and present 4 siamised 7 inch Headlamps, providing excellent illumination
for night driving. A more powerful alternator is installed to supply more
electrical current and to cope with the extra demand.
( Full size image 41k jpg )

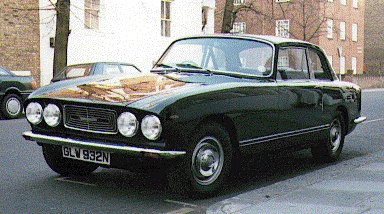

Coach line replaces side trims. Wider higher kickplate to protect door
skins. Indicator repeater lamps moved to front of wings. Raised wing crowns
provide manoeuvring sightlines and air dam effect over Bonnet surface at
speed.

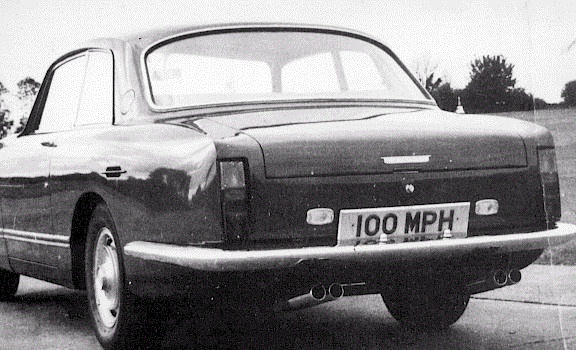

At the rear, the exhaust is split into 4 tail pipes siamised to
each side and finish with Chrome trims.
( Full size image 60k jpg ) / or move to next version
( Full size image
114k jpg )
New slimmer chrome concentric rectangular form grille with word
Bristol raised on metal ground set into centre of same.
( Full size image 74k jpg )

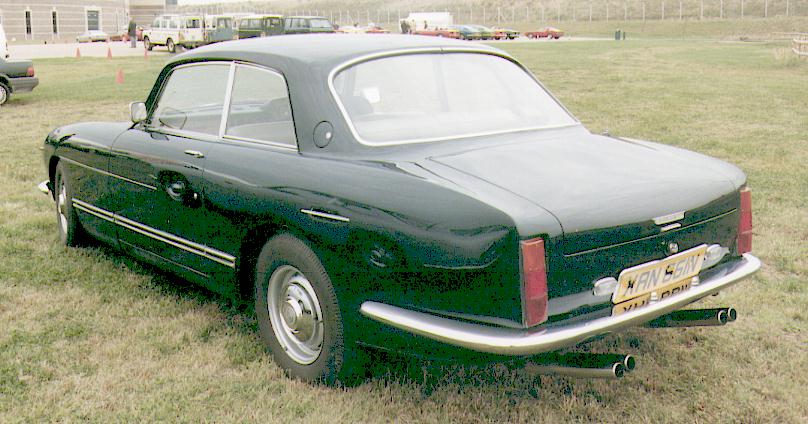

Boot lid slightly flatter. Simpler rectangular rear light clusters still set
vertical but let into body, being shrouded on inner and top edges.
( Full size image 99k jpg)

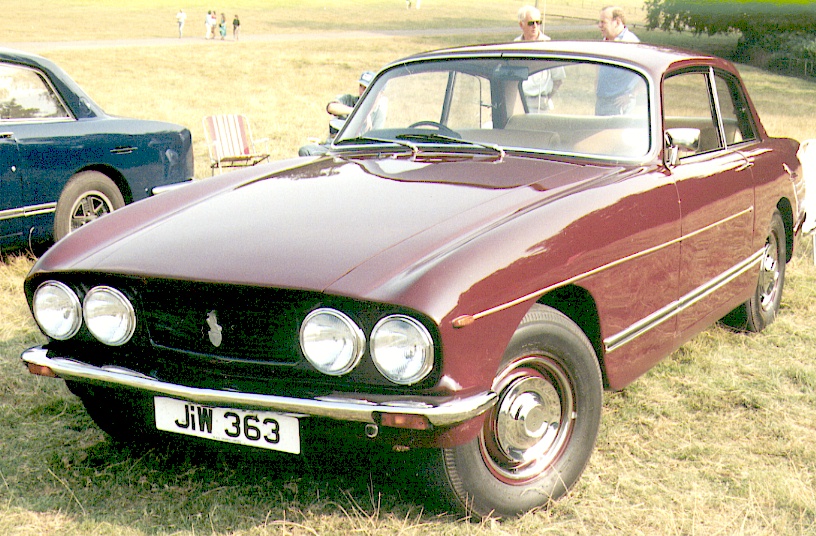

Grille is of similar design to that used on the Type 411 s4 but colour
changed to Matt Black and centred coloured Pegasus emblem atop Bristol Badge
replaces the nameplate on the previous series.
Inertia seat belts fitted
as standard specification.
